Fabrication layouts for a wide variety of shapes are essential for streamlining the fabrication process, significantly reducing fabrication time and enhancing accuracy. Our app specializes in providing comprehensive flat pattern options for various shapes commonly used in fabrication, such as Pipe Branches, Cones, Eccentric Cones, Toricones, and transitions from square to round. This tool is invaluable for professionals looking to optimize their fabrication workflows.

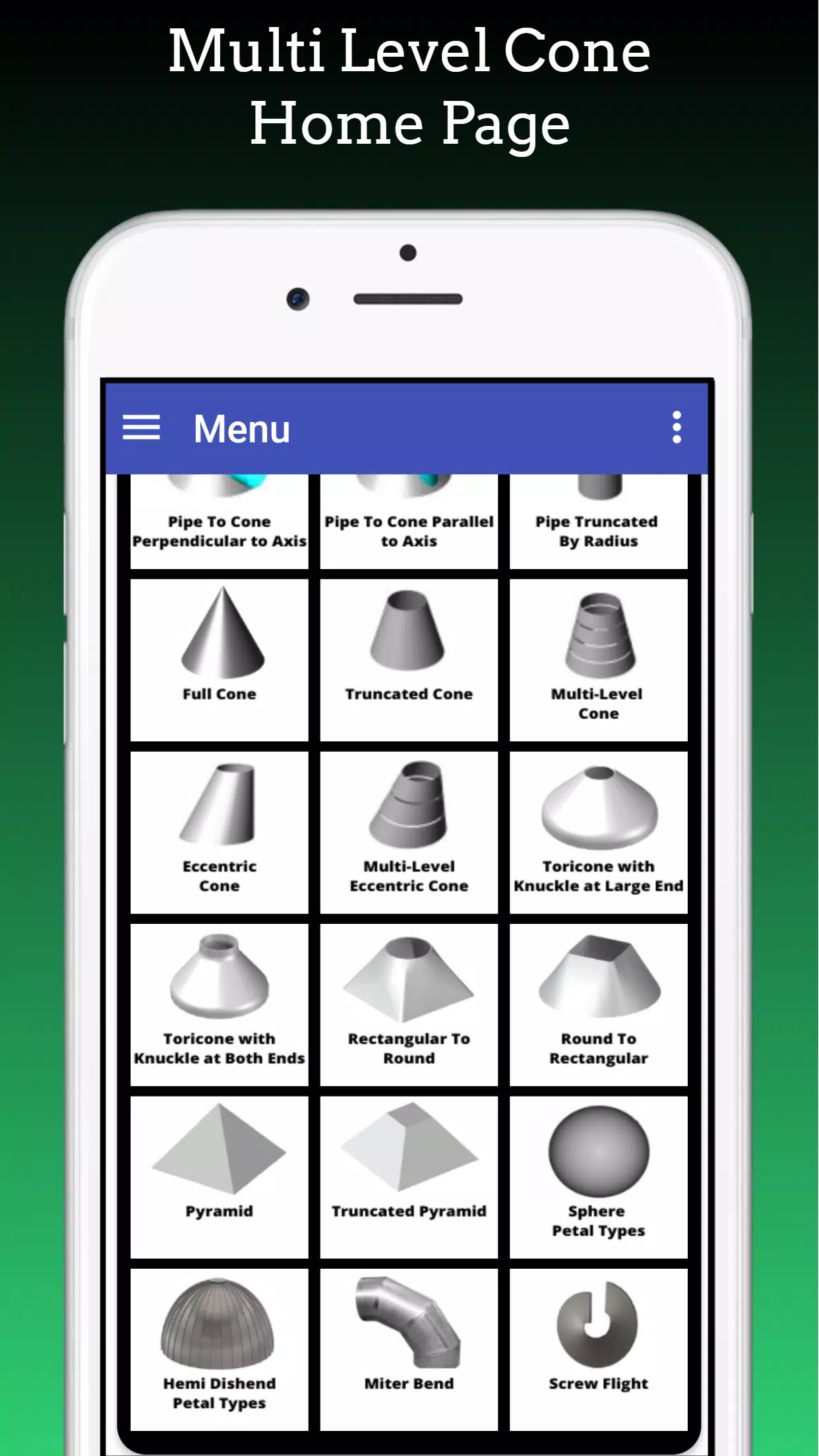

Within this application, users can access a diverse range of flat pattern layouts, including:

• Pipe Layout or Shell Layout or Pipe Flat Pattern
• Truncated Pipe Layout or Pipe cut at any angle Flat Pattern
• Truncated Pipe at Both Ends Layout or Pipe cut by an angle on both sides Flat Pattern
• Pipe to Pipe Intersection with equal Diameters or Pipe Branch Connection Flat Pattern
• Pipe to Pipe Intersection with unequal diameters or Pipe Branch Connection Flat Pattern
• Pipe to Pipe Intersection with offset diameters or Pipe Branch Connection Flat Pattern
• Pipe to Cone Intersection at Perpendicular to Axis Flat Pattern
• Pipe to Cone Intersection at Parallel to Axis Flat Pattern
• Pipe Truncated by Radius Flat Pattern
• Full Cone Layout Flat Pattern
• Truncated or Half Cone Layout Flat Pattern
• Multi Level Cone Layout Flat Pattern
• Eccentric Cone Layout Flat Pattern
• Multilevel Eccentric Cone Layouts Flat Pattern
• Tori Cone with Knuckle Radius at Large End Flat Pattern
• Tori Cone with Knuckle Radius at Both Ends Flat Pattern
• Rectangle to Round or Square to Round Transition Layout Flat Pattern
• Round to Rectangle or Round to Square Transition Layout Flat Pattern
• Pyramid Layout Flat Pattern
• Truncated Pyramid Layout Flat Pattern
• Sphere Petal Layouts Flat Pattern
• Dish End Petal Layouts Flat Pattern
• Miter Bend Layout Flat Pattern
• Screw Flight Layout Flat Pattern

This application caters to an extensive array of fabrication needs, encompassing cones, shells, pipes, pipe branch connections, full and truncated cones, transitions between square and round shapes, pyramids, spheres, dish ends, and more. It is an indispensable resource for professionals engaged in various sectors, including:

• Pressure vessels fabrication
• Process equipment fabrication
• Welding
• Piping
• Insulation
• Ducting
• Heavy equipment fabrication
• Storage tank construction
• Agitators manufacturing
• Mechanical equipment production
• Structural fabrication
• Industrial fabrication
• Heat exchanger production

This tool is particularly beneficial for a variety of roles within the industry, including production engineers, fabrication engineers, planning engineers, costing and estimating engineers, project engineers, fabrication contractors, supervisors, fitters, and workers. By leveraging our app, these professionals can achieve greater efficiency and precision in their fabrication projects.
